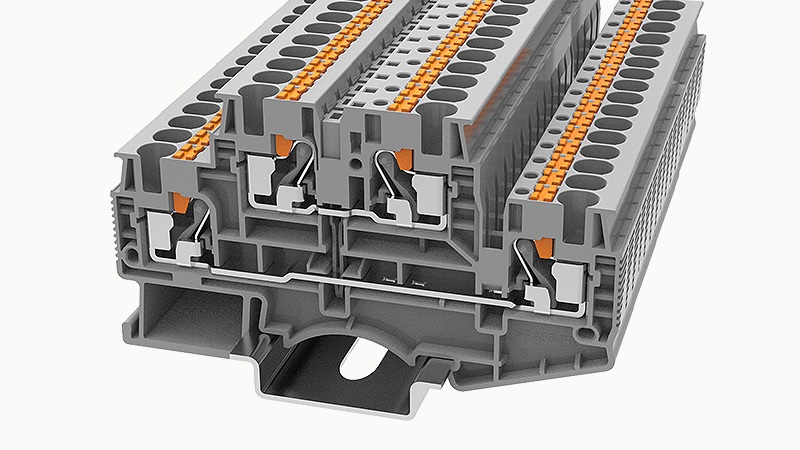

Push-In DIN-Rail TB
| Товар | Количество | Цена | Описание | 2 flexible conductors with a TWIN ferrule | Ambient temperature (operation) | Ambient temperature (storage / transport) | Anti-finger touch | Conductor cross section flexible | Conductor cross section flexible (ferrule with plastic sleeve) | Conductor cross section flexible (ferrule without plastic sleeve) | Conductor cross section solid | Conductor cross section solid AWG | Connection Type | End plate width | Fixing support | Flame retardant grade, in line with UL 94 | fuse | Fuse type | Height | Insulating material group | Insulation Materials | length | Manufacturer | Mechanical strength | NS 35/15 Height | NS 35/7,5 Height | Number of connections | Number of rows | Open-end side panels | Rated current | Rated current (III / 3) | Rated current(III/3) | Rated surge voltage | Rated voltage | Rated voltage (III / 3) | REACh SVHC | Relative humidity (storage/transport) | RoHS | Rotational Pull Test | Standard test | Strip length | Temperature rise test | Voltage drop | Width | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
в наличии
|
поиск предложений
|
Нажимная клемма на DIN-рейку DSKK4-PV Degson В каталоге Michip.by представлен электронный компонент - нажимная клемма на DIN-рейку…
Подробнее
|
0.5-1mm² | -40 °C ~ 105 °C（depending on derating curve） | -25℃~60℃ | Passed the test | 0.2~4mm² | 0.2-4mm² | 0.2-4mm² | 0.2~6mm² | 24~10 | In line connection | 2.2mm | Passed the test | V0 | 41.25mm | I | PA | 83.5mm | Degson | Passed the test | 56.25mm | 48.75mm | 4 | 2 | Yes | 28A | 32A | 6KV | 300V | 500V | Lead 7439-92-1 | 25%~75% | No excessive harmful substances | Passed the test | IEC60947-7-1 | 11~13mm | ≤45 K | ≤3.2mV | 6.2mm |
