Главная Каталог Разъемы Каталог DEGSON HDC Inserts

Inserts

Сравнить 0 товара

Товар	Цена	830V	Classification	Color	Conductor cross sections(AWG)	Conductor cross sections（mm²）	Connection meets standards	Connection method	Contact resistance	Dimension	Female/Male	Flammability rating	Insulation resistance	Manufacturer	Material（insert）	Materia（Contact）	Number of positions	On the basis of UL /CSARated current	PE Contacts	Pollution level	Rated current	Rated pulse voltage	Rated torque	RoHS	Series	Strip length	Surface（Contact）	Temperature range

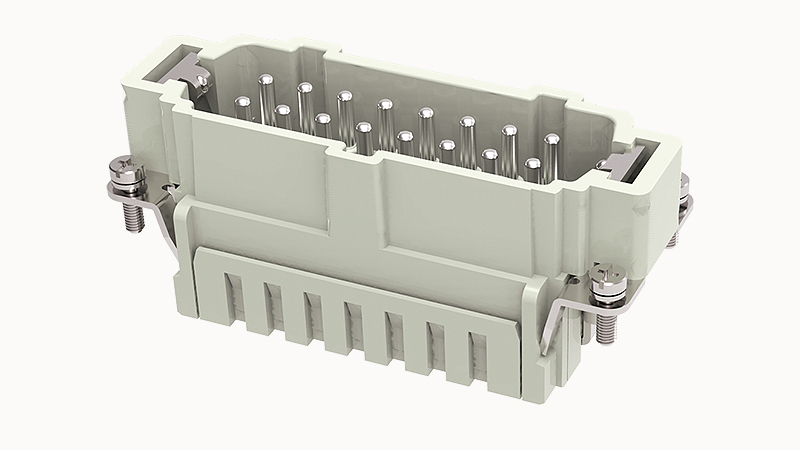

DE-016-MS Контактная вставка DE-016-MS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	16B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	16	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time

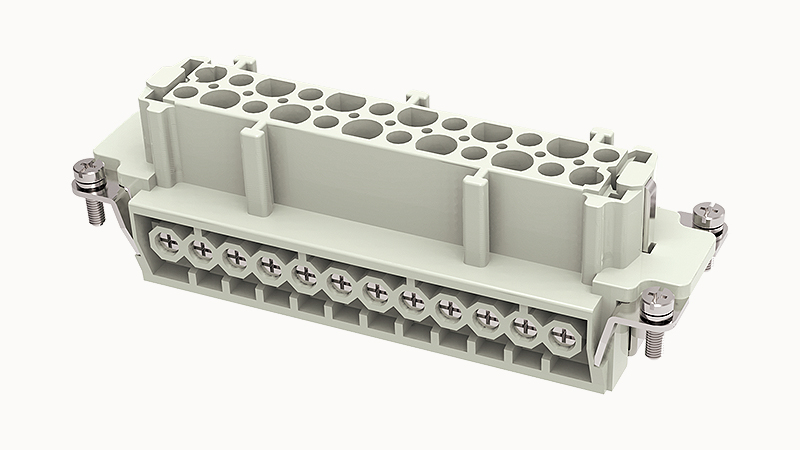

DE-024-F Контактная вставка DE-024-F Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	18-14AWG	0.75-2.5mm²	DIN EN 60664 DIN EN 61984	Screw connection	≤1mΩ	24B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	24	600V	Yes	3	16A	6KV	0.5N.m	Comply with RoHS exemptions	DE	7mm	Silver plated	-40℃~+125℃	≥500 time

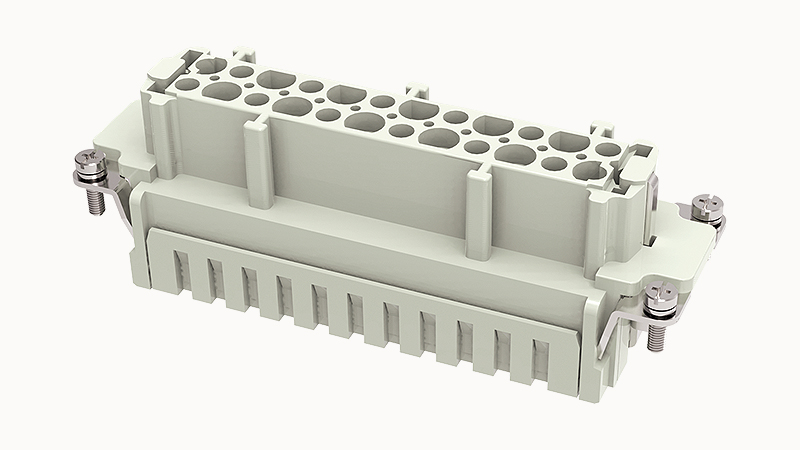

DE-024-FC Контактная вставка DE-024-FC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	24B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	24	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time

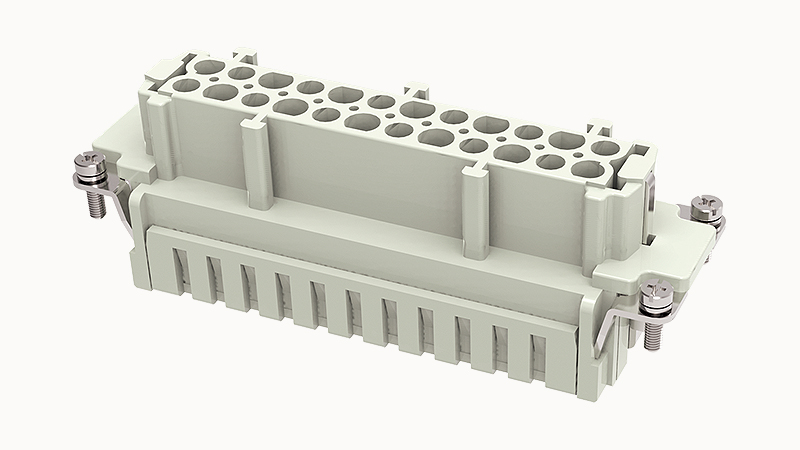

DE-024-FS Контактная вставка DE-024-FS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	24B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	24	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-024-M Контактная вставка DE-024-M Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	18-14AWG	0.75-2.5mm²	DIN EN 60664 DIN EN 61984	Screw connection	≤1mΩ	24B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	24	600V	Yes	3	16A	6KV	0.5N.m	Comply with RoHS exemptions	DE	7mm	Silver plated	-40℃~+125℃	≥500 time
DE-024-MC Контактная вставка DE-024-MC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	24B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	24	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time

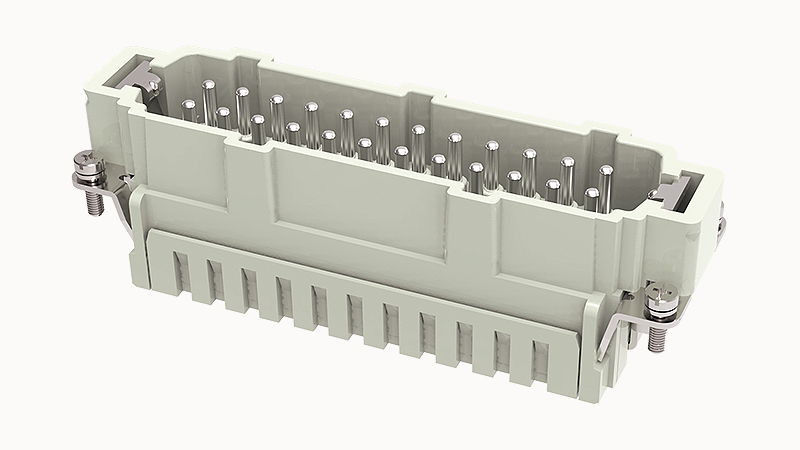

DE-024-MS Контактная вставка DE-024-MS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	24B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	24	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-032-F Контактная вставка DE-032-F Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	18-14AWG	0.75-2.5mm²	DIN EN 60664 DIN EN 61984	Screw connection	≤1mΩ	32B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	0.5N.m	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time

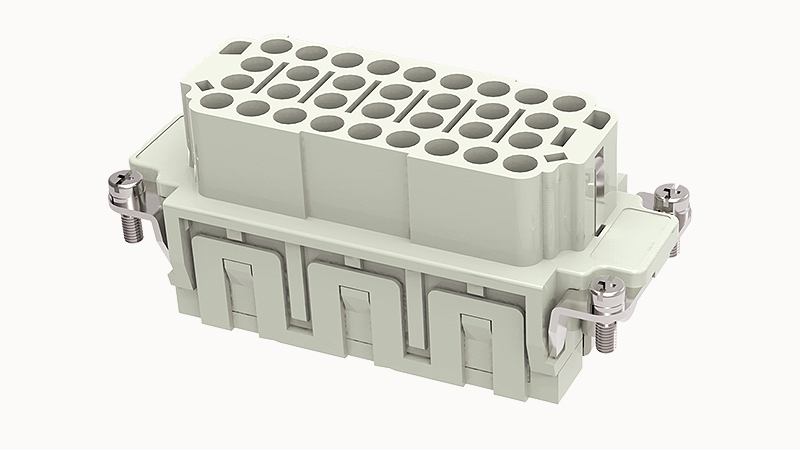

DE-032-FC Контактная вставка DE-032-FC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	32B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DE-032-FS Контактная вставка DE-032-FS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	32B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-032-M Контактная вставка DE-032-M Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	18-14AWG	0.75-2.5mm²	DIN EN 60664 DIN EN 61984	Screw connection	≤1mΩ	32B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	0.5N.m	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-032-MC Контактная вставка DE-032-MC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	32B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DE-032-MS Контактная вставка DE-032-MS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	32B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-048-F Контактная вставка DE-048-F Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	18-14AWG	0.75-2.5mm²	DIN EN 60664 DIN EN 61984	Screw connection	≤1mΩ	48B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	48	600V	Yes	3	16A	6KV	0.5N.m	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-048-FC Контактная вставка DE-048-FC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	48B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	48	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DE-048-FS Контактная вставка DE-048-FS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	48B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	48	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time

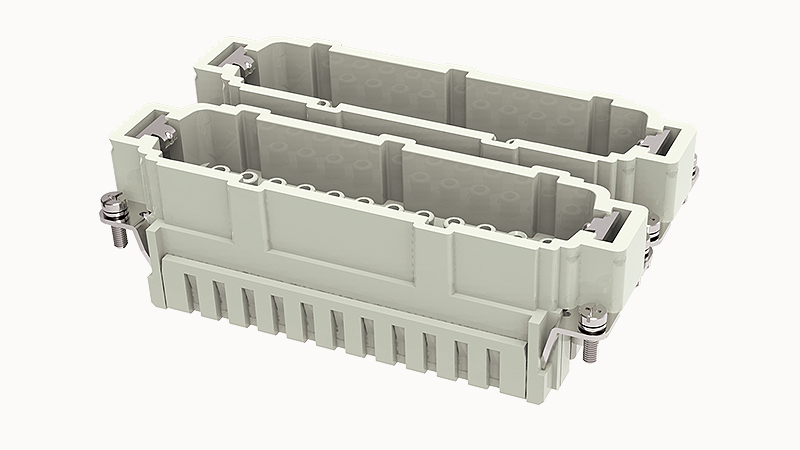

DE-048-M Контактная вставка DE-048-M Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	18-14AWG	0.75-2.5mm²	DIN EN 60664 DIN EN 61984	Screw connection	≤1mΩ	48B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	48	600V	Yes	3	16A	6KV	0.5N.m	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time
DE-048-MC Контактная вставка DE-048-MC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	48B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	48	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DE-048-MS Контактная вставка DE-048-MS Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-14AWG	0.14-2.5mm²	DIN EN 60664 DIN EN 61984	Spring cage connection	≤1mΩ	48B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	48	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DE	7-9mm	Silver plated	-40℃~+125℃	≥500 time

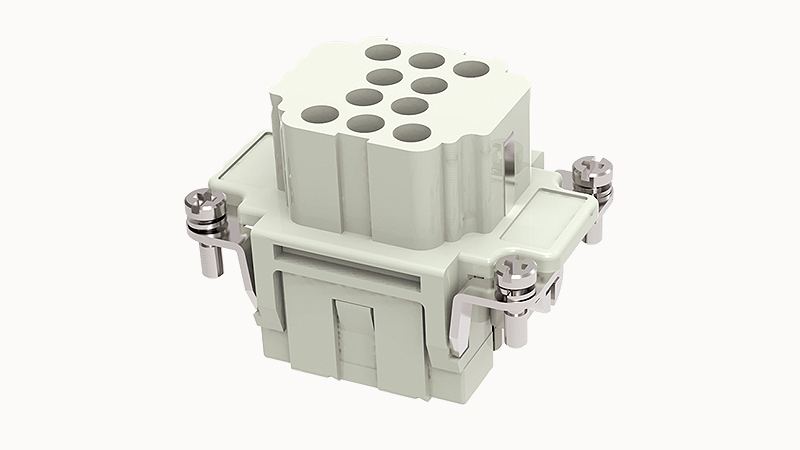

DEE-010-FC Контактная вставка DEE-010-FC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	6B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	10	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DEE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DEE-010-MC Контактная вставка DEE-010-MC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	6B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	10	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DEE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DEE-018-FC Контактная вставка DEE-018-FC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	10B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	18	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DEE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DEE-018-MC Контактная вставка DEE-018-MC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	10B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	18	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DEE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DEE-032-FC Контактная вставка DEE-032-FC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	16B	Female	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DEE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
DEE-032-MC Контактная вставка DEE-032-MC Degson Degson	поиск предложений	Insert	Grey/White（RAL 7032）	26-12AWG	0.14-4.0mm²	DIN EN 60664 DIN EN 61984	Crimping connection	≤1mΩ	16B	Male	V-0	≥10000MΩ	Degson	Polycarbonate（PC）	Copper alloy	32	600V	Yes	3	16A	6KV	Comply with RoHS exemptions	DEE	7.5mm	Silver plated/gold plated	-40℃~+125℃	≥500 time
