Inserts
| Товар | Цена | 830V | Classification | Color | Conductor cross sections(AWG) | Conductor cross sections（mm²） | Connection meets standards | Connection method | Contact resistance | Dimension | Female/Male | Flammability rating | Insulation resistance | Manufacturer | Material（insert） | Materia（Contact） | Number of positions | On the basis of UL /CSARated current | PE Contacts | Pollution level | Rated current | Rated pulse voltage | Rated torque | RoHS | Series | Strip length | Surface（Contact） | Temperature range | working life-mating cycles | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-14AWG | 0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 17 | 600V | No | 3 | 10A | 2.5KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

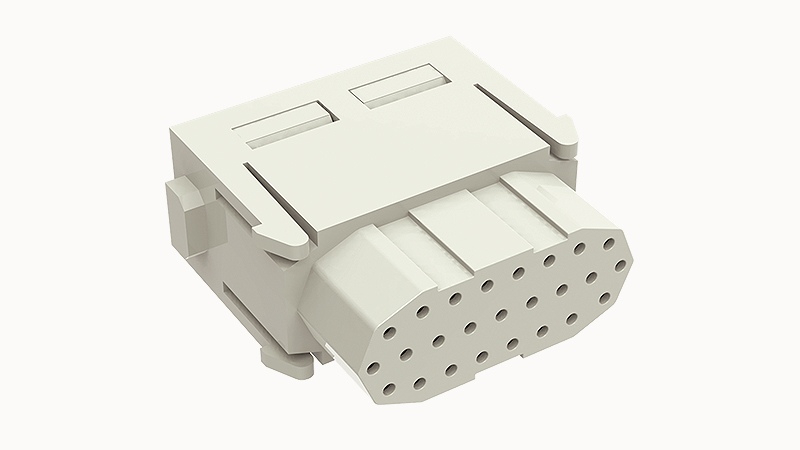

Insert | Grey/White（RAL 7032） | 28-20AWG | 0.09-0.52mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 25 | 600V | No | 3 | 4A | 0.8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 28-20AWG | 0.09-0.52mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 25 | 600V | No | 3 | 4A | 0.8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

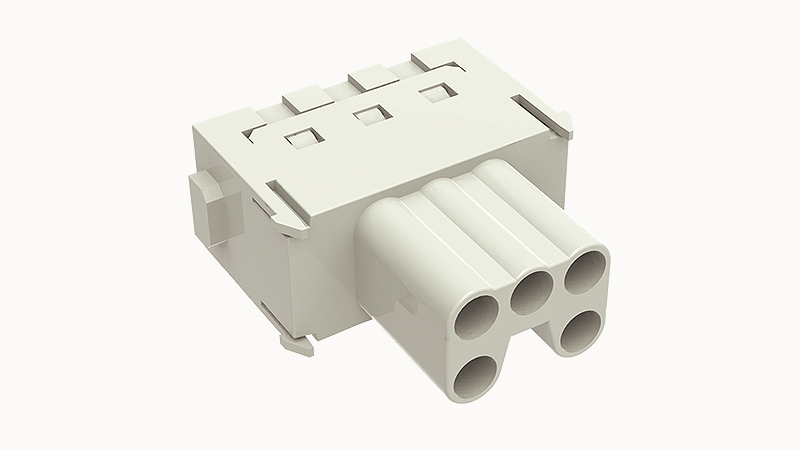

Insert | Grey/White（RAL 7032） | 26-14AWG | 0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3/6mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 5 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

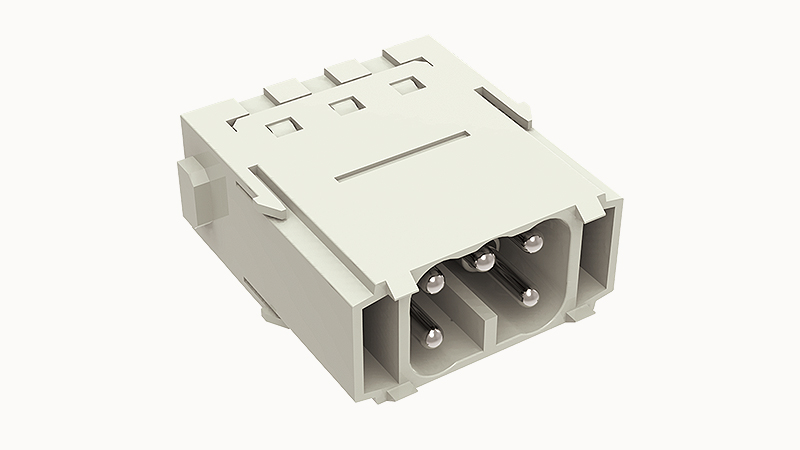

Insert | Grey/White（RAL 7032） | 26-14AWG | 0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3/3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 5 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

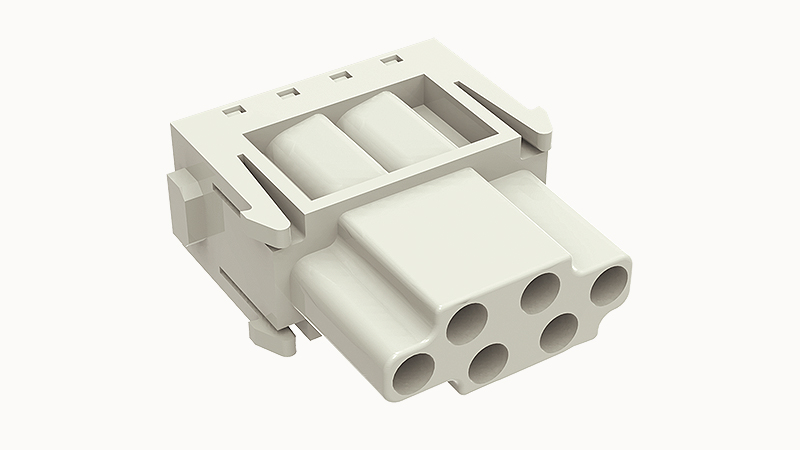

Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 6 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 6 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

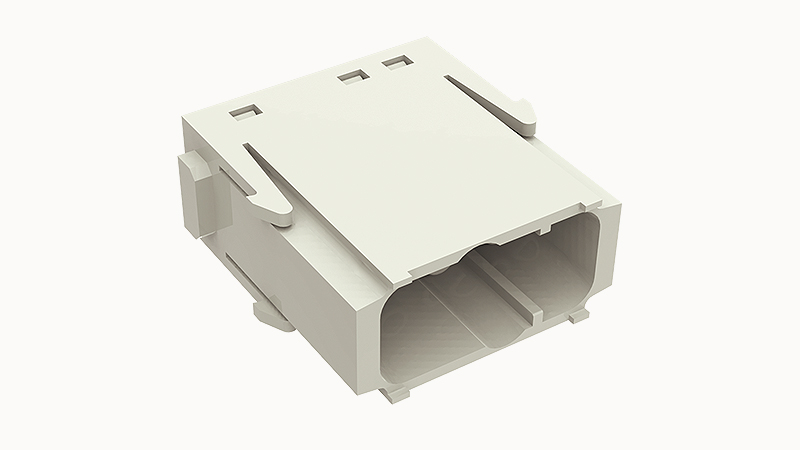

Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

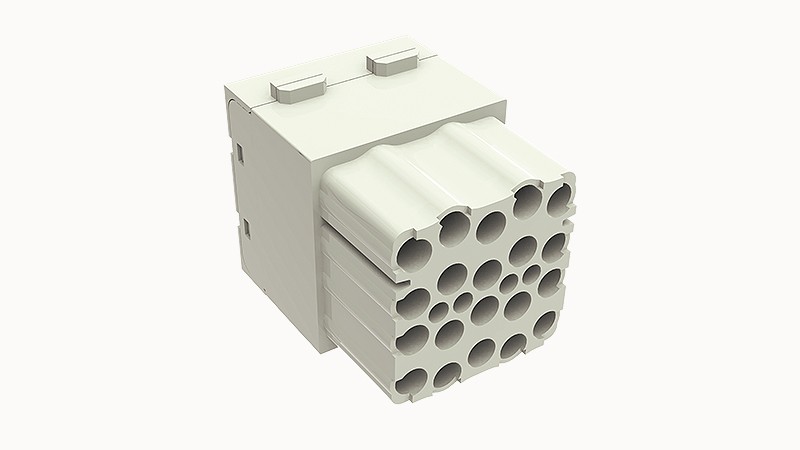

Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 20 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

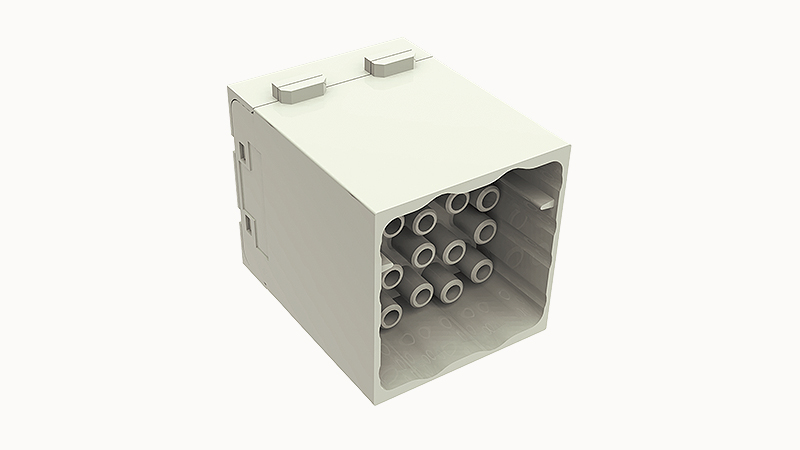

Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 20 | 600V | No | 3 | 16A | 6KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

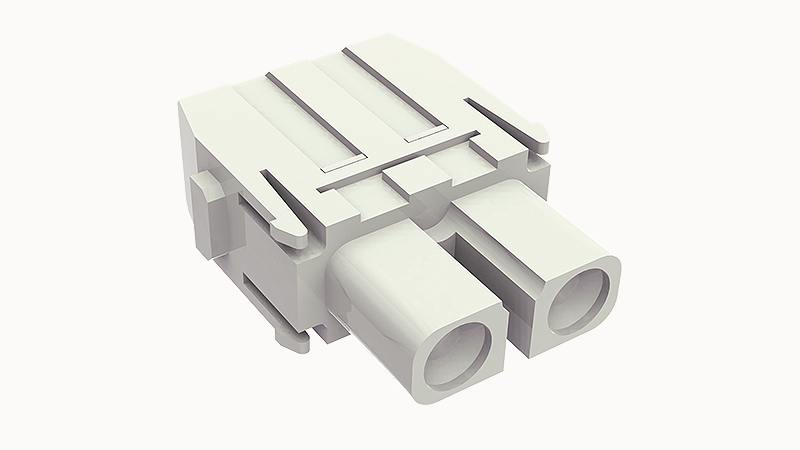

Insert | Grey/White（RAL 7032） | 14-9AWG | 2.5-8mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.5mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 2 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 11-12.5mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 10-8AWG | 6-10mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.5mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 2 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 11-12.5mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|

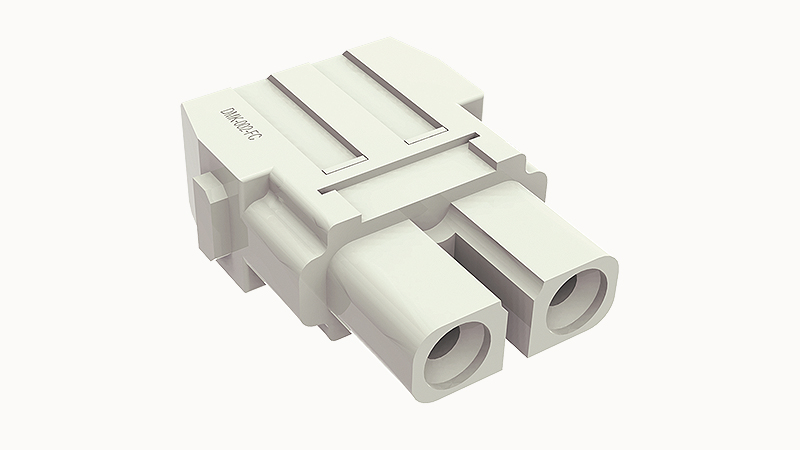

Insert | Grey/White（RAL 7032） | 16-8AWG | 1.5-10mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 2 | 600V | No | 3 | 40A | 8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|

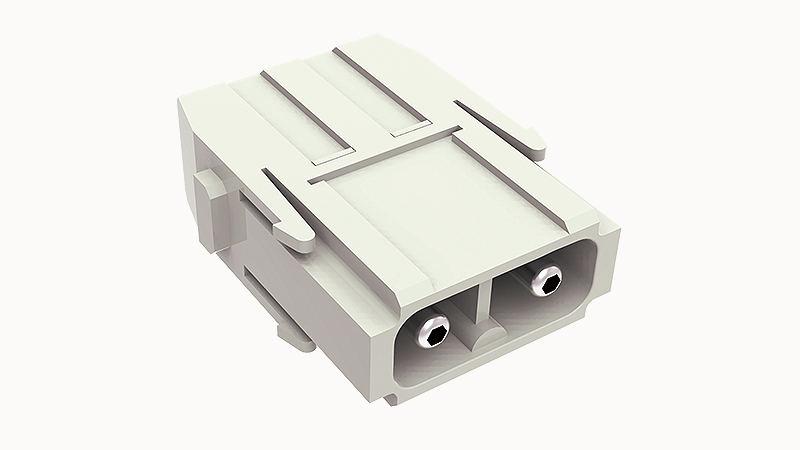

Insert | Grey/White（RAL 7032） | 14-9AWG | 2.5-8mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.5mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 2 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 11-12.5mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 10-8AWG | 6-10mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.5mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 2 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 11-12.5mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-8AWG | 1.5-10mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 2 | 600V | No | 3 | 40A | 8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 14-9AWG | 2.5-8mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 3 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 5-11mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 10-8AWG | 6-10mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 3 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 5-11mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-8AWG | 1.5-10mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 3 | 600V | No | 3 | 40A | 8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 14-9AWG | 2.5-8mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 3 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 5-11mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 10-8AWG | 6-10mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 3 | 600V | No | 3 | 40A | 8KV | 1.5N.m(2.5/4mm²) 2N.m(6/10mm²) | Comply with RoHS exemptions | DM | 5-11mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|

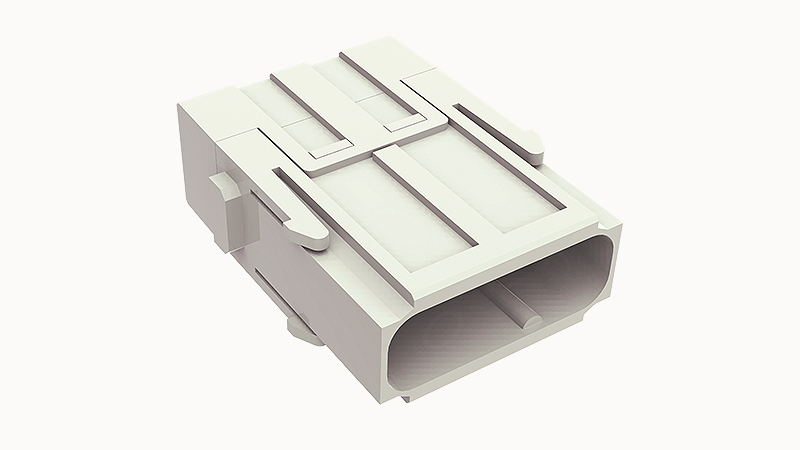

Insert | Grey/White（RAL 7032） | 16-8AWG | 1.5-10mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 3 | 600V | No | 3 | 40A | 8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-10/26-14AWG | 1.5-6mm²/0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3/6mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45750 | 600V | No | 3 | 40/10A | 8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-10/26-14AWG | 1.5-6mm²/0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3/3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45750 | 600V | No | 3 | 40/10A | 8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time |
