Inserts
| Товар | Цена | 830V | Classification | Color | Conductor cross sections(AWG) | Conductor cross sections（mm²） | Connection meets standards | Connection method | Contact resistance | Dimension | Female/Male | Flammability rating | Insulation resistance | Manufacturer | Material（insert） | Materia（Contact） | Number of positions | On the basis of UL /CSARated current | PE Contacts | Pollution level | Rated current | Rated pulse voltage | Rated torque | RoHS | Series | Strip length | Surface（Contact） | Temperature range | working life-mating cycles | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4.0mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 24B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 46 | 600V | Yes | 3 | 16A | 6KV | Comply with RoHS exemptions | DEE | 7.5mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4.0mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 24B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 46 | 600V | Yes | 3 | 16A | 6KV | Comply with RoHS exemptions | DEE | 7.5mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|

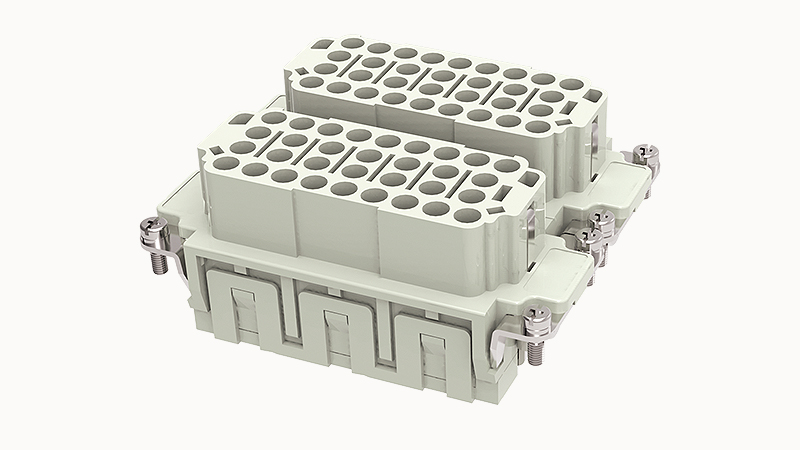

Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4.0mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 32B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 64 | 600V | Yes | 3 | 16A | 6KV | Comply with RoHS exemptions | DEE | 7.5mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4.0mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 32B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 64 | 600V | Yes | 3 | 16A | 6KV | Comply with RoHS exemptions | DEE | 7.5mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|

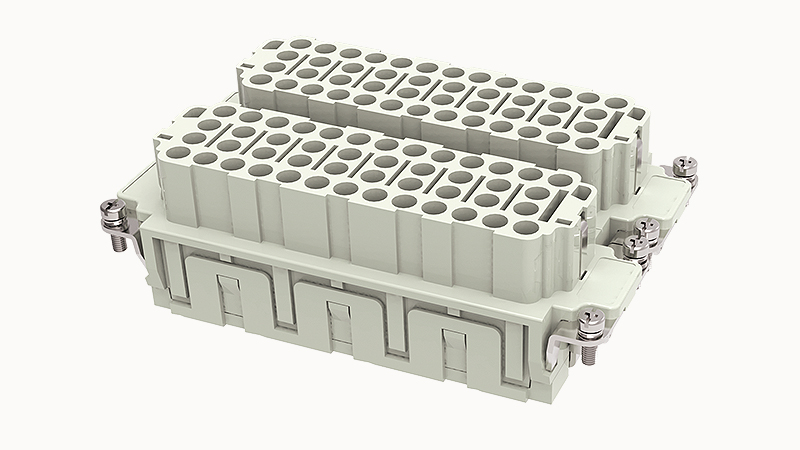

Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4.0mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 48B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 92 | 600V | Yes | 3 | 16A | 6KV | Comply with RoHS exemptions | DEE | 7.5mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-12AWG | 0.14-4.0mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1mΩ | 48B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 92 | 600V | Yes | 3 | 16A | 6KV | Comply with RoHS exemptions | DEE | 7.5mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-10/26-14AWG | 1.5-6.0mm²/0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3/3mΩ | 16B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45700 | 600/300V | Yes | 3 | 690/250V | 8/4KV | Comply with RoHS exemptions | DK | 6-9mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-10/26-14AWG | 1.5-6.0mm²/0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤0.3/3mΩ | 16B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45700 | 600/300V | Yes | 3 | 690/250V | 8/4KV | Comply with RoHS exemptions | DK | 6-9mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-6AWG | 1.5-16mm² | DIN EN 60664 DIN EN 61984 | Screw connection | ≤0.3mΩ | 16B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 4/0 | 600V | Yes | 3 | 80A | 8KV | 1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²) | Comply with RoHS exemptions | DK | 14mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-6AWG | 1.5-16mm² | DIN EN 60664 DIN EN 61984 | Screw connection | ≤0.3mΩ | 16B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 4/0 | 600V | Yes | 3 | 80A | 8KV | 1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²) | Comply with RoHS exemptions | DK | 14mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-6AWG | 1.5-16mm² | DIN EN 60664 DIN EN 61984 | Screw connection | ≤0.3mΩ | 16B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45692 | 600/300V | Yes | 3 | 80/16A | 8/6KV | 1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²) 0.5N.m | Comply with RoHS exemptions | DK | 14/7.5mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-6AWG | 1.5-16mm² | DIN EN 60664 DIN EN 61984 | Screw connection | ≤0.3mΩ | 16B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45692 | 600/300V | Yes | 3 | 80/16A | 8/6KV | 1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²) 0.5N.m | Comply with RoHS exemptions | DK | 14/7.5mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-6/20-14AWG | 1.5-16mm²/1.0-2.5mm² | DIN EN 60664 DIN EN 61984 | Screw connection | ≤0.3/3mΩ | 24B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45873 | 600/600V | Yes | 3 | 400/400V | 6/6KV | 1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²) 0.5N.m | Comply with RoHS exemptions | DK | 6-9mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 16-6/20-14AWG | 1.5-16mm²/1.0-2.5mm² | DIN EN 60664 DIN EN 61984 | Screw connection | ≤0.3/3mΩ | 24B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 45873 | 600/600V | Yes | 3 | 400/400V | 6/6KV | 1.2N.m(1.5mm²) 2N.m(2.5mm²) 3N.m(4/6/10/16mm²) 0.5N.m | Comply with RoHS exemptions | DK | 6-9mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 7-3AWG | 10-25mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.5mΩ | 24B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8/0 | 600V | Yes | 3 | 100A | 8KV | 6N.m(10mm²) 6N.m(16mm²) 7N.m(25mm²) | Comply with RoHS exemptions | DK | 13mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 7-3AWG | 10-25mm² | DIN EN 60664 DIN EN 61984 | Axial screw connection | ≤0.5mΩ | 24B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8/0 | 600V | Yes | 3 | 100A | 8KV | 6N.m(10mm²) 6N.m(16mm²) 7N.m(25mm²) | Comply with RoHS exemptions | DK | 13mm | Silver plated | -40℃~+125℃ | ≥500 time | ||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 20-12/26-12AWG | 0.5-4.0mm² /0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1/3mΩ | 10B | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8/24 | 600/300V | Yes | 3 | 16/10A | 6/4KV | Comply with RoHS exemptions | DK | 6-8mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 20-12/26-12AWG | 0.5-4.0mm²/0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤1/3mΩ | 10B | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8/24 | 600/300V | Yes | 3 | 16/10A | 6/4KV | Comply with RoHS exemptions | DK | 6-8mm | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | |||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 28-18AWG | 0.09-0.82mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 9 | 600V | No | 3 | 5A | 0.8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 28-18AWG | 0.09-0.82mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 9 | 600V | No | 3 | 5A | 0.8KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | DIN EN 60664 DIN EN 61984 | Crimping connection | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8 | 30V | No | 3 | 1A | 0.8KV | Comply with RoHS exemptions | DM | Silver plated | -40℃~+85℃ | ≥500 time | |||||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | DIN EN 60664 DIN EN 61984 | Crimping connection | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 8 | 30V | No | 3 | 1A | 0.8KV | Comply with RoHS exemptions | DM | Silver plated | -40℃~+85℃ | ≥500 time | |||||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-14AWG | 0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 12 | 600V | No | 3 | 10A | 4KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-14AWG | 0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Male | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 12 | 600V | No | 3 | 10A | 4KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time | ||||
|
|
поиск предложений
|
Insert | Grey/White（RAL 7032） | 26-14AWG | 0.14-2.5mm² | DIN EN 60664 DIN EN 61984 | Crimping connection | ≤3mΩ | 1 module | Female | V-0 | ≥10000MΩ | Degson | Polycarbonate（PC） | Copper alloy | 17 | 600V | No | 3 | 10A | 2.5KV | Comply with RoHS exemptions | DM | Silver plated/gold plated | -40℃~+125℃ | ≥500 time |
